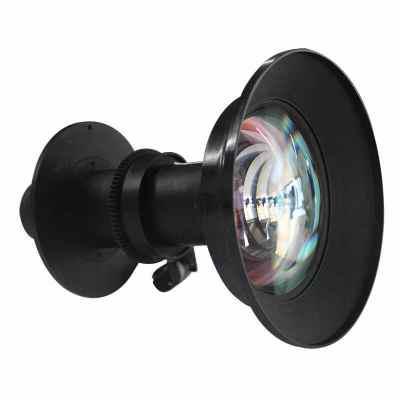

Appotronics AL-DL062FR Short Fixed Lens for AL-DH620A AL-DH750A AL-DU735A AL-DU835A AL-DU935A

Genuine Appotronics Lens AL-DL062FR Short Fixed is an OEM optical accessory for Appotronics business projectors. It is a short-throw (Short Throw) lens with a 0.62:1 throw ratio. The OEM compatibility list covers 5 models; before installation, simply verify the projector model and panel size, with no need for adapter rings. The value of an OEM lens lies not in a few extra specifications but in its factory calibration to the optical path and mount of the projector series. Once installed, the image circle, edge illumination, and focus travel all match their design values, so there is no need to use keystone correction to compensate for image quality.

1. Lens Specifications

Brand	Appotronics（Appotronics）
Lens Model	AL-DL062FR Short Fixed
Throw Ratio	0.62:1
Product Type	Short-throw lens (Short Throw)
Compatible Models	5 models
Warranty	12 months; non-accidental damage is eligible for after-sales service, based on the date on the shipping document

The above specifications are subject to the OEM specifications. For mechanical dimensions, flange distance, and mount type not listed in the specification table, please contact us with the projector model for verification. Ordering based solely on a similar model carries the risk that the lens will not fit.

2. Calculating Installation Distance from Throw Ratio

The throw ratio is the ratio of the installation distance to the image width. This genuine lens is fixed-focus (0.62:1), so the installation distance varies linearly with image size, with no adjustment margin. Accurate measurements are essential before installation.

Image Size	Image Width	Required Installation Distance
100 inches	2.15 m	Approx. 1.33 m
120 inches	2.58 m	Approx. 1.60 m
150 inches	3.22 m	Approx. 2.00 m
200 inches	4.30 m	Approx. 2.67 m

The distances above are the clear distances from the lens face to the screen and do not allow for rear-housing ventilation or cable-routing space. They are calculated for a 16:10 image; actual distances should be verified on site and in accordance with the OEM manual.

3. Compatible Projector Models (5 Models)

The following table is taken from the OEM compatibility list. Brightness and resolution are populated from the model database; entries that cannot be obtained are marked "—", and no estimates are made.

Model	Brightness	Resolution
AL-DH620A	—	—
AL-DH750A	—	—
AL-DU735A	—	—
AL-DU835A	—	—
AL-DU935A	—	—

To check whether a model not on the list is compatible, send us a photo of the projector nameplate and the existing lens. Platforms from the same generation often share mounts, but ordering based on model similarity is not worth the risk.

Throw Ratio by Projector Series

The nominal throw ratio of the same AL-DL062FR Short Fixed lens varies across the following series. Select the appropriate value based on the series of the projector in use.

Projector Series	Throw Ratio
—	0.62:1

4. Three Checks Before Replacement

• Confirm the projector's imaging chip and resolution. OEM lenses are designed for a specific panel size. If the panel specifications differ, the image circle cannot cover the full image, resulting in vignetting or light loss at the edges after installation.
• Calculate the installation distance first. The lens has a nominal throw ratio of 0.62:1. Use the table in Section 2 to calculate the distance based on the dimensions of your installation space. A fixed-focus lens has no adjustment margin; even when using a zoom lens, allow 10–20 cm at both ends.
• Verify the mount and locking mechanism. The OEM lens is calibrated to the mount of that projector series. After installation, you must hear it click into the locked position. A skewed image or soft edges usually means the lens is not fully locked, rather than indicating a problem with the lens itself.

If you are unsure, photograph both the projector nameplate and the existing lens nameplate and send them to us. Verification against the actual hardware is the safest approach.
