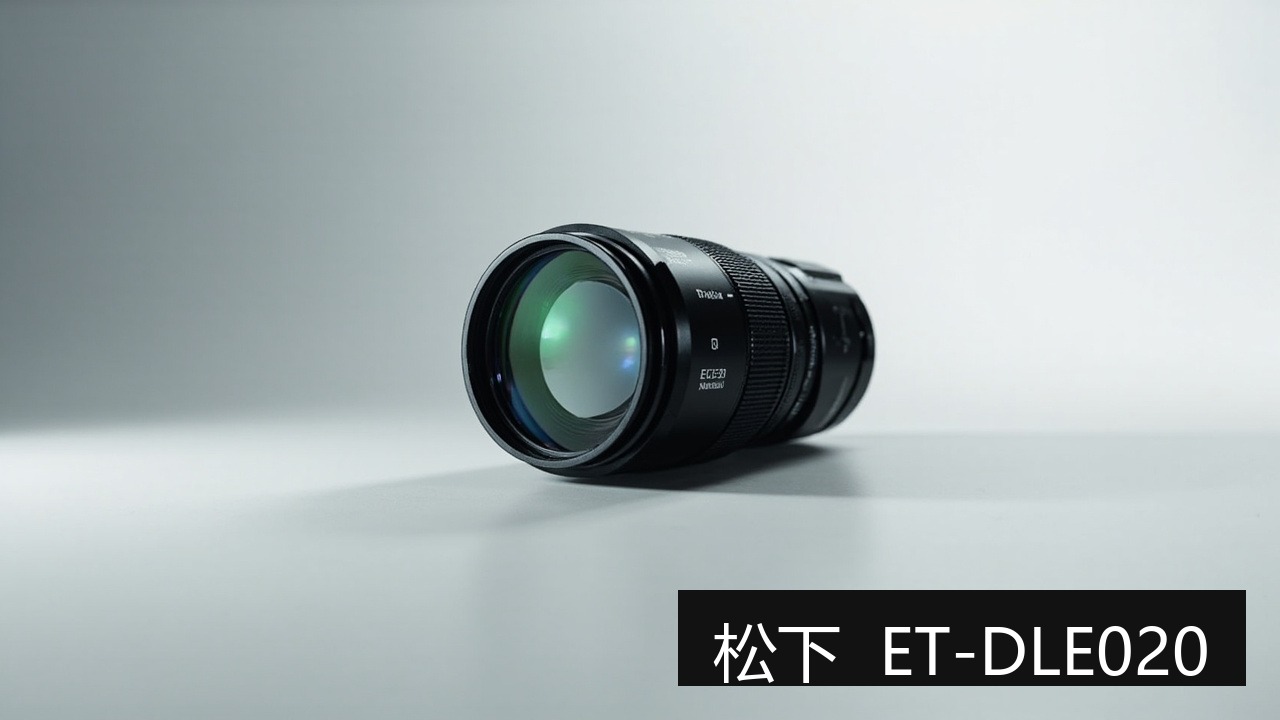

Panasonic ET-DLE020 Ultra Short Throw Lens: Compatible with 30 Models Including PT-FRZ580C

Panasonic Original Lens ET-DLE020 is a genuine optical accessory for Panasonic professional projectors. It is an ultra short throw lens with a throw ratio of 0.280-0.299:1, designed for 0.67-inch 1DLP panels. The original compatibility list covers 30 projector models; before installation, simply verify your projector model and panel size — no adapter rings needed. The value of an original lens isn't a few extra rows of numbers on a spec sheet, but the fact that it is calibrated at the factory to the optical path and mount of that projector series: once installed, the image circle, edge brightness, and focus travel all match design values, so you don't need keystone correction to compensate for image quality.

1. Lens Specifications

Brand	Panasonic
Lens Model	ET-DLE020
Throw Ratio	0.280-0.299:1
Product Type	Ultra Short Throw
Compatible Panel	0.67-inch 1DLP
Compatible Models	30
Warranty	12 months; non-human damage covered by after-sales service, based on the date on the shipping document

The above specifications are subject to the original manufacturer's data. For mechanical dimensions, flange focal distance, and mount type not shown in the spec table, please verify with us against your projector model — ordering based on model similarity alone carries the risk of incompatibility.

2. Converting Throw Ratio to Installation Distance

Throw ratio is the ratio of installation distance to image width. This original lens is fixed-focal (0.280-0.299:1), so the installation distance changes linearly with image size and has no adjustment margin — it must be measured accurately before installation.

Image Size	Image Width	Required Installation Distance
100 inches	2.15 m	Approx. 0.60 – 0.64 m
120 inches	2.58 m	Approx. 0.72 – 0.77 m
150 inches	3.22 m	Approx. 0.90 – 0.96 m
200 inches	4.30 m	Approx. 1.20 – 1.29 m

The above figures are the clear distance from the lens face to the screen, excluding rear ventilation and cabling space. Calculated for 16:10 aspect ratio; actual values are subject to on-site measurement and the original manufacturer's manual.

3. Compatible Models (30)

The table below is taken from the original manufacturer's compatibility list; brightness and resolution are filled in from the model database, with "—" where unavailable — no speculation.

Model	Brightness	Resolution
PT-FRZ580C	5400 lumens	WUXGA, 1920 x 1200
PT-FRZ680C	6200 lumens	WUXGA, 1920 x 1200
PT-FRZ99C	10000 lumens	WUXGA, 1920 x 1200
PT-FRZ78C	7200 lumens	WUXGA, 1920 x 1200
PT-FRW73C	7200 lumens	WXGA, 1280 x 800
PT-FRZ89C	8800 lumens	WUXGA, 1920 x 1200
PT-FRZ79C	7200 lumens	WUXGA, 1920 x 1200
PT-FRZ69C	6200 lumens	WUXGA, 1920 x 1200
PT-FRZ98C	10000 lumens	WUXGA, 1920 x 1200
PT-FRW93C	10000 lumens	WXGA, 1280 x 800
PT-FRX110C	11000 lumens	WUXGA, 1920 x 1200
PT-FRZ575C	—	—
PT-FRQ100C	10000 lumens	WQXGA 2715 x 1697
PT-FRZ120C	12000 lumens	WUXGA, 1920 x 1200
PT-FRZ88C	8800 lumens	WUXGA, 1920 x 1200
PT-FRQ080C	8000 lumens	WQXGA 2715 x 1697
PT-FRZ86C	8600 lumens	WUXGA, 1920 x 1200
PT-FRQ86C	8600 lumens	4K, 3840 x 2160
PT-FRZ76C	—	—
PT-RCQ10	10000 lumens	WQXGA 2715 x 1697
PT-RCQ80	8000 lumens	WQXGA 2715 x 1697
PT-RZ120	12000 lumens	WUXGA, 1920 x 1200
PT-RZ990	9400 lumens	WUXGA, 1920 x 1200
PT-RZ890	8500 lumens	WUXGA, 1920 x 1200
PT-RZ790	7000 lumens	WUXGA, 1920 x 1200
PT-RZ690	6000 lumens	WUXGA, 1920 x 1200
PT-RQ7L	7500 lumens	4K, 3840 x 2160
PT-RQ6L	6500 lumens	4K, 3840 x 2160
PT-RZ7L	7500 lumens	WUXGA, 1920 x 1200
PT-RZ6L	6500 lumens	WUXGA, 1920 x 1200

To check whether a model outside this list is compatible, send us a photo of the projector nameplate and the existing lens for verification — same-generation platforms often share mounts, but ordering based on model similarity alone isn't worth the risk.

Throw Ratio Across Model Series

The same ET-DLE020 mounted on the following series does not carry the same nominal throw ratio; selection must use the value for the actual projector series.

Model Series	Throw Ratio
—	0.280-0.299:1

4. Three Things to Confirm Before Replacement

• Panel size must match. The ET-DLE020 is designed for 0.67-inch 1DLP panels. Projectors with a different panel size or resolution may physically mount, but the image circle and edge brightness will suffer.
• Calculate installation distance first. This lens has a nominal throw ratio of 0.280-0.299:1; apply it to your venue dimensions using the table in Section 2. Fixed focal length has no margin, and even zoom lenses need 10–20 cm clearance at both ends.
• Check the mount and locking mechanism. The original lens is calibrated to the mount of that projector series; after installation you must hear it lock into place. Image skew and soft edges are usually caused by incomplete locking, not the lens itself.

If unsure, take a photo of the projector nameplate and the existing lens nameplate and send them to us — verification against the actual hardware is the safest approach.
