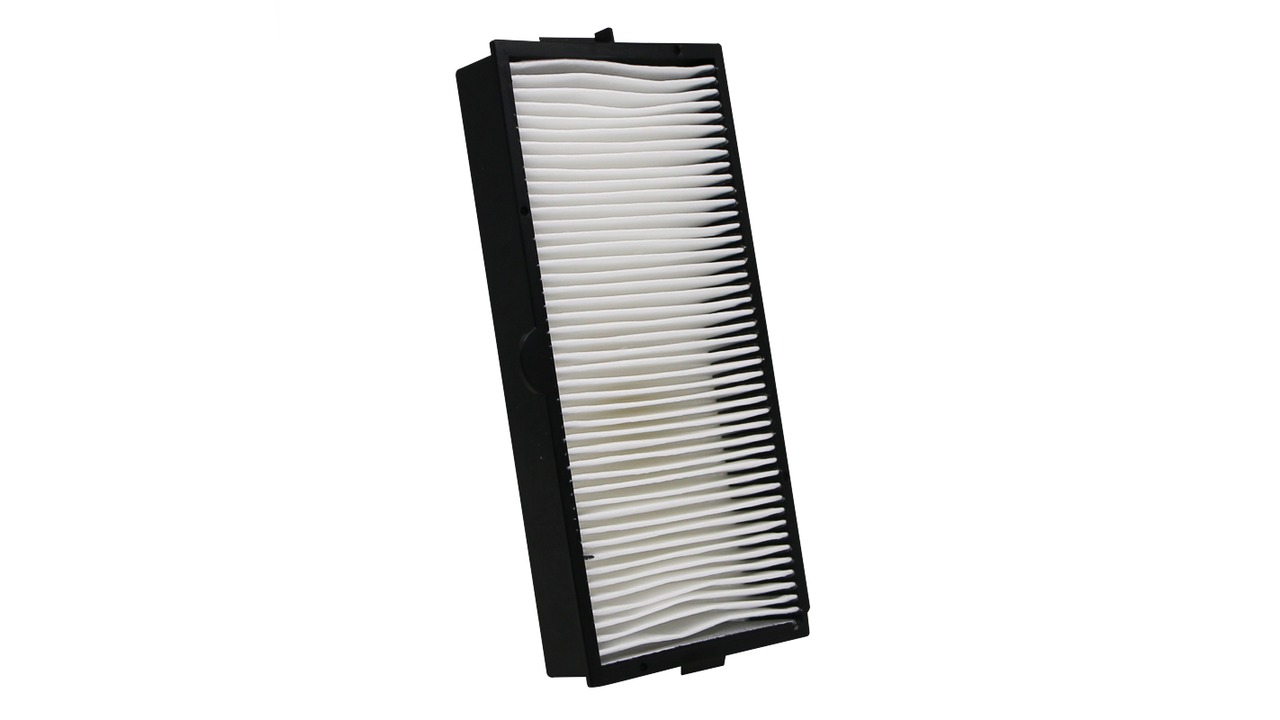

Panasonic ET-RFE200 Projector Air Filter for 8 Models (OEM Replacement)

ET-RFE200 is the OEM air filter model used in Panasonic projectors, covering 8 models. This article presents the filter specifications, replacement indicators, compatible model list, and pre-replacement checks in one place.

I. Air Filter Specifications

These specifications are taken from the Zorsika product database. Confirm the dimensions and clip design against the actual item and OEM part number.

II. When It Should Be Replaced and Whether It Can Be Washed

An air filter is a consumable, but its deterioration produces no obvious warning signs and is usually noticed only when there is a problem. If any of the following signs appears, inspect the filter:

• Noticeably dim image and dull colors: Blocked intake airflow raises the internal temperature, causing the projector to reduce its power automatically as a protective measure. The result appears as a drop in brightness.
• Frequent temperature or filter alerts: Most models have a filter timer that displays a message when the service interval expires. Even without an alert, a fan that continuously runs at high speed or produces more noise generally indicates an obstructed airflow path.
• Blackened filter that does not transmit light: Remove the filter and inspect it against the light. If light transmission has clearly deteriorated or the surface has become matted, cleaning is unlikely to restore it, and the filter should be replaced.

Cleaning Guidelines

Light dust accumulation can be cleaned: First remove loose dust with a soft-bristled brush or low-pressure compressed air, then backflush the filter with clean water from the exhaust side. Air-dry it completely until no water remains before reinstalling it. Observe three precautions—do not rub the filter media vigorously, do not use detergents, and do not reinstall it while wet. If the filter media is loosened or torn, the enlarged pores make it effectively useless, allowing dust to enter the optical path directly.

The environment determines replacement frequency. In dust-heavy environments such as classrooms, construction sites, and street-facing showrooms, inspection intervals should be noticeably shortened; climate-controlled meeting rooms can be checked less frequently. Rather than following a fixed schedule, inspect light transmission during each cleaning and use the filter’s actual condition as the more reliable basis for replacement.

III. Compatible Models (8 Models, Panasonic)

The following compatible models for ET-RFE200 have been verified for Panasonic projectors:

PT-SLZ66C, PT-EW530/PT-SLW63C/CL, PT-SLX65C/CL, PT-EX600/PT-SLX70C/CL, PT-EW630/PT-SLW73C/CL, PT-EX500/PT-SLX60C/CL, PT-SLZ67C/CL PT-EZ570, ET-LAE200

The list contains verified models and is not exhaustive. Projectors from the same generation often share the same filter specification. For models not listed, send us a photo of the chassis nameplate and the original filter for confirmation.

IV. Three Checks Before Replacement

1. Verify the model: The OEM part number should match ET-RFE200. Some Panasonic models use different filter configurations for the same chassis, and filters with different part numbers are not interchangeable.
2. Verify the dimensions and thickness: A difference of one or two millimeters in length or width can prevent a proper seal. If it is too thick, the cover will not close; if it is too thin, it will leak air. Use the original filter as the measurement reference and do not order solely by the projector model name.
3. Determine whether it is a standalone filter or a framed filter: Some models use filters with a plastic frame or clips, while others use plain filter media that must be installed in the existing frame. A filter with the wrong configuration will not fit. Taking a photo during disassembly is the safest way to confirm the correct type.

V. Choosing Between Zorsika, OEM, and Other Alternative Air Filters

Zorsika projector air filters are manufactured to the OEM filter media specifications, with pore size, thickness, and airflow resistance individually matched to the original. The dimensions and clips are molded to the OEM design, allowing a tight fit that prevents dust leakage.

OEM parts offer the greatest reliability, but they come at a higher overall cost, and lead times depend on the supply channel. Common problems with low-cost alternatives include uneven pore sizes and corners that do not fit properly. Once installed, these filters either leak dust or obstruct airflow. If dust enters the optical path, the lamp and LCD panel ultimately bear the consequences.

VI. Frequently Asked Questions

Q: My projector is not among the 8 models listed. Can I use ET-RFE200?

A: The list contains verified models and is not exhaustive. Panasonic projectors from the same generation often share the same filter specification. Send the chassis nameplate and a photo of the original filter to the Zorsika technical team, who can confirm whether it is compatible.

Q: How often should a projector air filter be replaced?

A: There is no fixed number of months. Replacement frequency depends on the dust concentration in the environment and the projector’s operating hours. Use the actual condition as the basis for replacement: Replace the filter when light transmission has clearly deteriorated, the surface has become matted, the image appears dimmer, or the projector displays a filter alert. In dust-heavy environments, shorten the inspection interval.

Q: Can an air filter be washed and reused?

A: Light dust accumulation can be cleaned: Remove loose dust with a soft-bristled brush or low-pressure compressed air, backflush the filter with clean water from the exhaust side, and reinstall it only after it has completely air-dried. Do not rub the filter media, use detergents, or reinstall it while wet. If the filter media is already loosened, damaged, or matted, cleaning cannot restore it, and the filter must be replaced.

Q: Can the air filter be omitted?

A: No. The filter blocks dust, which can enter the optical path and settle on the LCD panel and color wheel, causing permanent dark spots and color defects. Cleaning requires projector disambiguation, and the cost is far higher than that of the filter itself.

Q: Why choose a Zorsika air filter instead of a cheaper option?

A: Zorsika air filters are manufactured to the OEM filter media specifications, with matching pore size and airflow resistance parameters, and each batch undergoes pressure-drop testing before shipment. Compared with OEM filters, they provide stable supply and better overall value. Compared with other alternatives, they offer reliable filtration precision and fit.

Q: How should I choose between OEM, Zorsika, and other alternative filters?

A: The key to selecting an air filter is balancing filtration performance with airflow resistance. Zorsika air filters (see the specifications table above for the model) use filter media with the same specifications as the OEM, with pore size, thickness, and airflow resistance individually matched to the original, ensuring both dust protection and adequate airflow. Other alternative filters often have uneven pore sizes and corners that do not fit properly, causing them to either leak dust or obstruct airflow and ultimately consume more lamps over time. Choose Zorsika to save both time and money.
